Introduction

The article presented bellow, shows how to add a custom report page to CRM - add a link to custom report to Reports Grid in CRM.
(see other Siccolo articles about working with CRM:
CRM Customization - Import CRM Leads from Excel via Email and CRM Customization - How to Qualify Leads in CRM - Set Lead State and Status in CRM ) Customizing CRM is not hard at all, thanks to semi-open web interface. This article shows how to add your own custom report to CRM. No, not using Crystal Reports.
Quickly customize Microsoft CRM - CRM Reports - so that you capture and manage the exact data you need to increase sales and service effectiveness. Customize the Microsoft CRM user interface - Learn how to customize the Microsoft CRM user interface by creating and modifying forms, views, and previews. Microsoft CRM allows system integrators to create a highly customized and integrated application. In addition, the solution supports flexible options that enable users to focus only on the features they need to perform the tasks their jobs require.

Add Custom Report to CRM - create a link to a custom report in Reports grid in CRM




1. Create your own custom report page

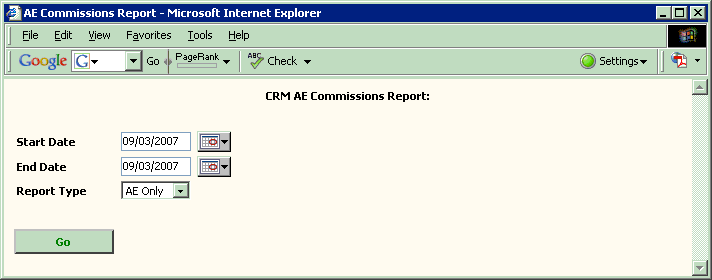

For example, I'm using ASP/HTML to create something like this:




2. Add a link to CRM Reports grid
in Microsoft CRM, in [your CRM server]\c$\Inetpub\wwwroot\_grid folder, open grid_data_reports.aspx file.
<body>

<%
	crmGrid.RenderData(Response.Output);
	RenderContextMenu();
%>

	<% if (Request.QueryString["ReportAreaID"]=="19")
	{
		%>

		<table width="100%"
			cellspacing="0"
			cellpadding="1"
			class="gridData"
			onclick="handleClick();"
			ondblclick="handleDblClick();" >

		<col width="29"><col><col width="100">

		<tr reportid="99999">
		<td>
		<img src='/_imgs/ico/18_addTeam.gif' border=0>
		</td>

		<td>
		Commissions Report
		</td>
		<td>Custom</td>
		</tr>
		</table>

	<%
	}
	%>

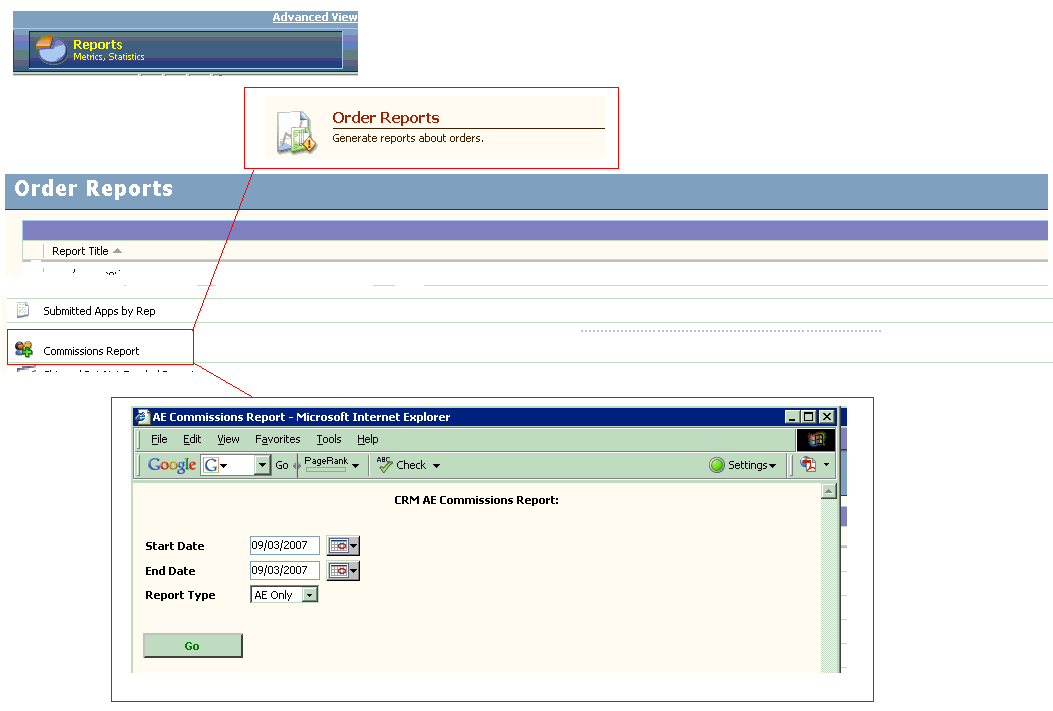

So, the above code will display a link to your CRM Custom Report. Next, we need to handle link selection.
3. Custom Report Selection - Open Custom Report from CRM Reports Grid
In the same file, in Microsoft CRM, in [your CRM server]\c$\Inetpub\wwwroot\_grid folder, grid_data_reports.aspx file, find Javascript function handleDblClick() function
<%script language="JavaScript">

	...
	...

	function handleDblClick()
	{
		...
	}
	...
	...
<%/script>
Notice, that in the previous section, I assigned "magic" 99999 number to my custom CRM report. To open this Custom CRM report:
<script language="JavaScript">

	...

	function handleDblClick()
	{
		var oTR = event.srcElement;

		// Find the TR that contains the cell that was clicked on
		while (oTR.tagName != "TR")
		{
			oTR = oTR.parentElement;
			if (oTR == null) return; 	// ignore the dragged cursor command
		}

		if (  oTR.reportid == 99999)
		{

			window.open("[path to your CRM custom report here!]",
						"commissions_report",
						"width=700,height=500,resizable=yes,status=no,toolbar=no,menubar=yes,location=no,scrollbars=yes");
			return
		}
		...
		//else - open CRM report, as usual:
		window.open("/reports/viewer/html/viewer.aspx?id=" + oTR.reportid, null, "resizable=yes,status=no,toolbar=no,menubar=no,location=no");
	}

	...
</script>

And that's it. We just developed our own CRM customization. As you can see Microsoft CRM Customization can be done with various tools.
